LEEVN
LEEVN
Panel
Continuing to expand the signature line of sound absorbing textile panels Acoustics, Casalis has launched Leevn at Orgatec 2018.
Leevn is the 5thaddition to the Acoustics designed by renowned textile designer Aleksandra Gaca, Leevn is produced in fire-resistant Trevira CS and is available in several fresh color combinations. Acoustics is a series of sound absorbing textile panels with a woven 3D structure.
Due to their ribbed texture and the thickness of the materials, these fabrics absorb and reflect sound waves much better than flat textiles; thus contributing to a more muted environment.
DESIGNER
ALEKSANDRA GACA
Textile designer Aleksandra Gaca (*1969) attended the Secondary School of Fine Arts in her hometown of Lódz (Poland). She then studied at the Faculty of Textiles and Fashion at the Royal Academy of Fine Arts in The Hague. She received several international prizes for her experimental textile modelling. Aleksandra Gaca lives and works as an independent textile designer in Delft. As regards innovation, the emphasis is explicitly on spatial weaving structures and three- dimensional effects.
Lots of experiments were carried out with combinations and special types of yarn she developed herself. There is a wide use of materials from soft mohair to super-strong polyester. Also sturdy yarns such as lurex, paper yarns and metal wire are regularly processed.
These contrasts make for the thus characterized structures and reliefs.But also tactility and a whole range of expressions: matt/gloss, hard/soft, high-tech versus natural. Technical qualities are linked to the love of the weaving profession. The final result of this is fascinating fabrics on the cutting edge of art, design and architectonic modelling.
INFORMATION
COMPOSITION OF THE PANEL
− Aluminium frame with straight or round-angled corners
− Acoustic absorber
− Cover in 3D fabric with closing system at the back
DIMENSIONS
- Width: 95 cm
- Length: 500 cm
FABRIC
- Woven in a mixture of 0.6% elasthane
- 99.4% Trevira CS polyester.
REACTION TO FIRE
− SBI Test Report – EN 13823
− Class of reaction to fire EN 13501-1 B-s2,d0
ACOUSTIC PERFORMANCE
Class A acoustic rating - αw 0.85
PANEL TECHNICAL DETAILS
− Simple system of covers easily removable for cleaning and replacement
− Thickness of the panel 60 mm – mounted 75 mm
− Sizes and shapes customisable: Irregular, triangle, round sides, L-shape to cover corners
− Power sockets and screens integratable

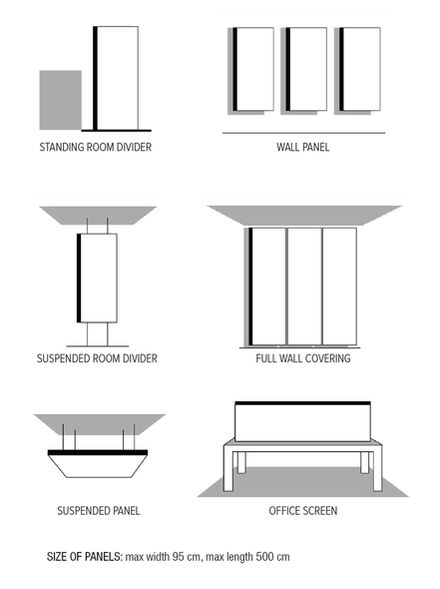

− All fixing systems available (wall, ceiling, suspended, standing)
COLORS
