Intra-lighting. Futon Mirror
Futon Mirror
FUTON MIRROR
information
BRAND
Intra-lighting
POWER SUPPLY RANGE
24V DC
PRODUCT TYPE
Mirror
IP PROTECTION
IP44
LUMEN MAINTENANCE FACTOR
50000h L90 B10 at 25°C
POWER
40 W
INSTALLATION
Wall mounted (W)
CORRELATED COLOUR TEMPERATURE - CCT
2700 K
MATERIAL
- Extruded Aluminium Profile
- Powder Coated
NOMINAL LUMINAIRE LUMINOUS FLUX
2700 lm
OPTIC MATERIAL
Satin opal polycarbonate diffuser
PACK DIMENSIONS
1606x660x129 mm
WEIGHT
10.7 kg
LUMINAIRE EFFICACY
67 lm/W
BODY COLOUR
Matte Black

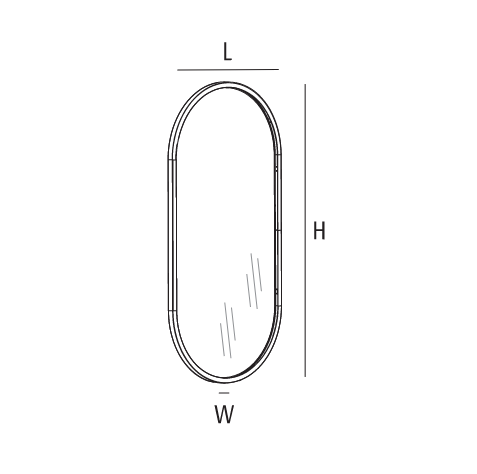

DIMENSIONS
- Height : 1217 cm
- Width : 27 cm
- Length : 606 cm
PACKAGING WEIGHT
Weight of luminaire with packaging : 6.6 kg
LIGHT SOURCE LUMINOUS FLUX
4666 lm
DRIVER
Driver not included, order separately
CHROMATICITY TOLERANCE (INITIAL MACADAM)
2
COLOUR RENDERING INDEX - CRI
90
LIGHT OUTPUT RATIO
- LOR 100 %
- ULOR 0 %
- DLOR 100 %
- Luminaire efficacy (LEF) 67 lm/W:
PHOTOMETRY
ARTICLE NO
16795400A0HD
LUMINAIRE LUMINOUS FLUX
4666 lm
PANEL TYPE
Mirror with heater
CLASSIFICATION
- BZ : BZ 10
- UTE --
- DIN : A10
- CIE : 10 32 68 100 100
UGR VALUES
- X=4H, Y=8H, S = 0,25H
- Radiant Class : 70/50/20
- Transverse : 26.4
- Longitudinal : 26.4
