Loehr W1 STACK Shelving System

W1 STACK shelving system

Loehr W1 STACK Shelving System
Loehr W1 STACK Shelving System

W1 STACK SHELVING SYSTEM

STACK is a highly functional shelving system with an inherent architectural quality. Boards and side panels engineered from sheet metal can be assembled to form a rigid grid structure providing stability and sturdiness. The modular dimensions are defined by standardized everyday items and the requirements of office environments.

The elements are bolted together at mounting points invisible from the exterior, lending the shelf an industrial and minimalist aesthetic. STACK can be configured in a multitude of variants and options to serve as a sideboard, side table or display rack for retail environments.

Loehr W1 STACK Shelving System
Loehr W1 STACK Shelving System
Loehr W1 STACK Shelving System

The product is shipped flat-pack and all elements can be separated for optimized recycling or replaced when in need of repair. The surface is powder-coated and available in two colours.

designer

DIRK WINKEL

Dirk Winkel is a Berlin-based product designer who graduated from the University of Arts (UdK) Berlin, followed by a MA in Design Products from the Royal College of Art (RCA) London in 2010.

He is specialised in lighting and furniture design and has worked for different designers and design houses in Berlin and London before setting up his own studio in Berlin in summer 2011.

Driven by his belief in the beauty of formal purism, his great interests are the exploration of pushing the boundaries of industrial mass production techniques, the rethinking of light and lighting paradigms, and the investigation of new materials and their potential.

Since 2012 he has been teaching Design Construction at the Industrial Design course of the UdK. In 2022, he was appointed guest professor for product design at the HBKsaar.

His work has been featured by Frame, DAMn, icon, Surface, Monocle, Gestalten Verlag and many more and was on display at numerous places like Art Basel Miami, the VitraHaus or the London Design Museum and has won several awards and nominations like GOOD DESIGN (Chicago Athenaeum), Swedish Design Award (Svensk Form), Designs of the Year (London Design Museum), the German Design Award (Special Mention) and the Editors‘ Choice Award (Stockholm Furniture & Light Fair).

features

ARRANGEMENTS

W1 shelves can be placed in line (D), in front of each other (E) – or both – allowing for a great variety of arrangements and configurations to meet office, retail or home storage requirements. Fixation to a wall is mandatory at a minimum height of four levels (F). The highboard at three levels and 1160mm height (D) can however be also used as a freestanding element to structure spaces.

Loehr W1 STACK Shelving System

THE SYSTEM

The W1 STACK shelving system is based on the concept to simply ‘stack up’ shelf floors to the desired height. Multiple shelves can be arranged by placing them just next to each other. Additional fittings, add-ons and future extensions can be added to an existing system effortlessly.

- Elements are assembled by using the parts supplied with two sets: The base set / lowboard and the stacking set. All pre-configured W1 shelves (sideboard / highboard / etc.) are constructed from only these two sets.
- For setting up, first the elements desired to stack up a shelf are assembled (A), then stacked upon each other and fastened (B). The shelf is then ready to use (C).

INFORMATION

BRAND

Loehr

PRODUCTION

Made in Italy

DESIGN YEAR

2023

Loehr W1 STACK Shelving System

LOAD CAPACITY

75kg / Floor

PRODUCT TYPE

Stack Shelving System

RECYCLABLE

100% recyclable

DESIGNER

Dirk Winkel

Loehr W1 STACK Shelving System
Loehr W1 STACK Shelving System

COLOURS

-Light grey (RAL 7035) -Zinc yellow (RAL 1018)

MATERIAL AND SURFACES

⁃Sheet aluminum -Powder-coated ⁃Sheet steel -Powder-coated

Loehr W1 STACK Shelving System

SMALL PARTS

⁃ Adjustable feet PE
⁃ Galvanized steel screws

Loehr W1 STACK Shelving System

TRANSPARENCY

All parts of STACK are manufactured by a partner in Berlin, Germany, who is specialized in industrial sheet metal processing with high precision laser cutting and CNC press brakes. The powder-coating is applied by another partner, also located in Berlin.

SPECIFICATIONS

⁃ Sheet steel from European production, quality DC01 (1.0330), cold rolled.
⁃ Aluminum sheet from European production, material EN AW-Al Mg3 (according to DIN 3.3535), cold rolled.
⁃ Polyester resin-based powder-coatings on metal parts are solvent-free and do not contain heavy metals (REACH and RoHS compliant). The recovery rate of excess powder is 99%.

Loehr W1 STACK Shelving System

TRAY OPTION

The top floor of a shelf can be optionally mounted in the tray configuration. Simply turn it by 180° during assembly. The floors of the base set can always be installed in either way. The visible connection points are concealed with the covers supplied by default.

SHAPES

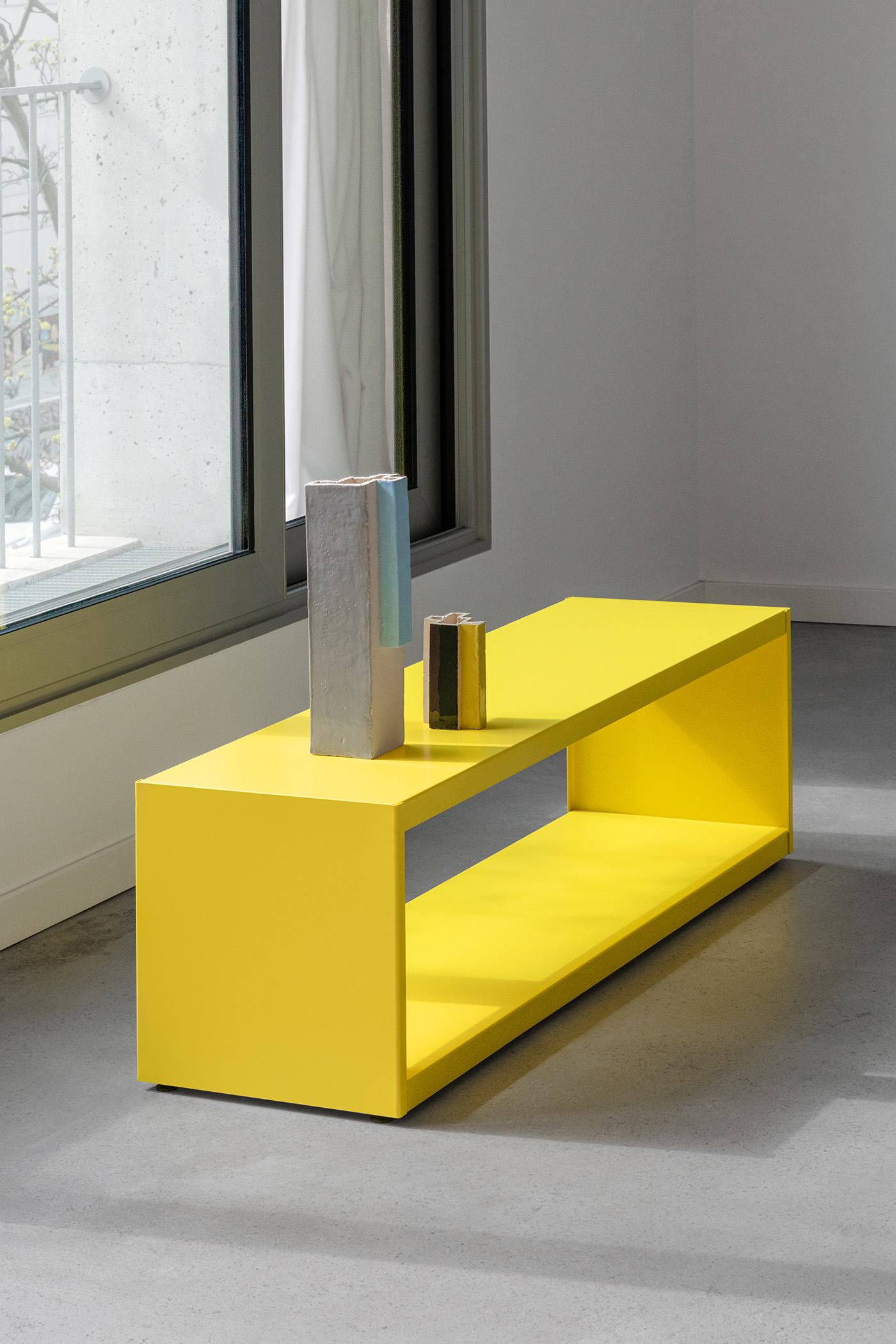

Base set / lowboard
850 × 400 × 420mm
Sideboard
850 × 400 × 790mm
Highboard
850 × 400 × 1160mm

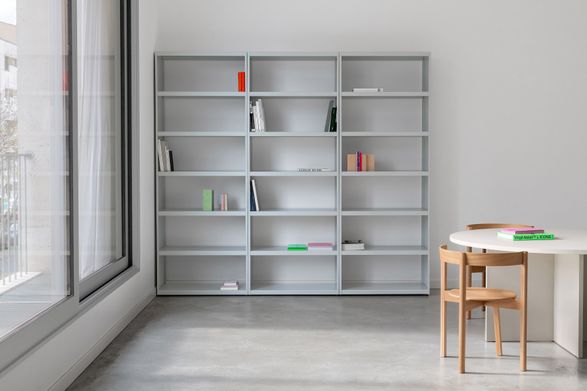

Shelf
850 × 400 × height variable
Highboard
1400 × 400 × 1160mm
Base set / lowboard
1400 × 400 × 420mm
Sideboard
1400 × 400 × 790mm
Shelf
1400 × 400 × height variable
