Nola Slingan Ashtray

SWING ASHTRAY

Nola Slingan Ashtray

SWING ASHTRAY

Design By Gunilla Hedlund

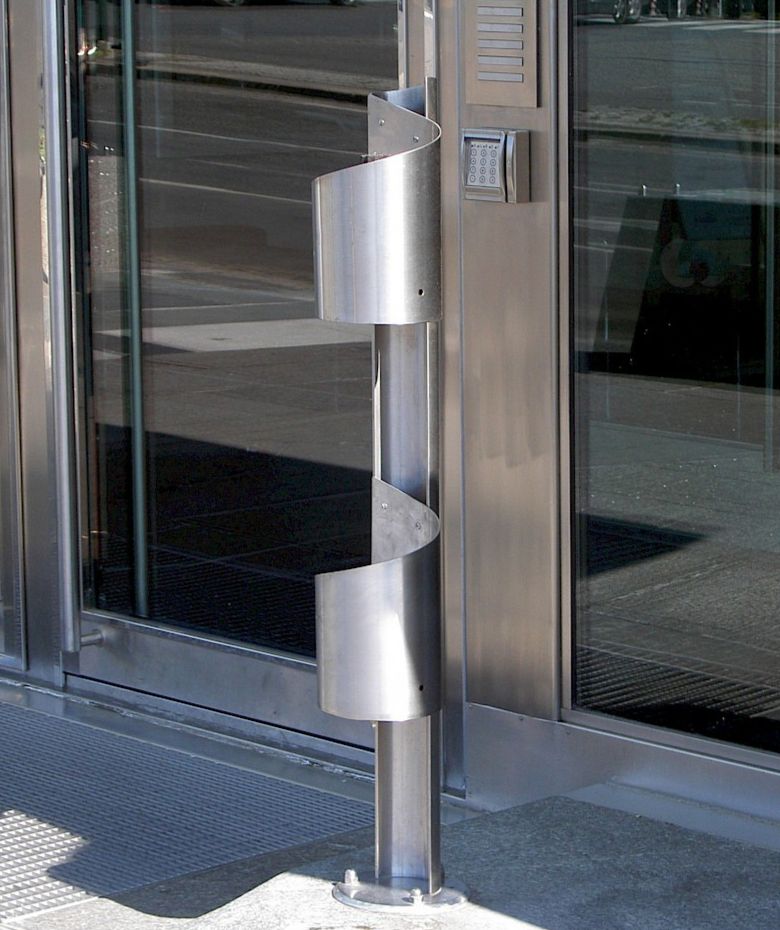

Slingan’s spiraling form resembles an architectural detail more than an ashtray. Slingan can be mounted to a wall or fixed to a freestanding support.

 Its unique shape complements rounded structures such as columns and posts, or provides a striking contrast to flat surfaces and right angles. A discreet flap in the ashtray’s underside opens to empty the contents.

INFORMATION

BRAND

Nola

PRODUCT TYPE

Ashtray

DESIGNER

Gunilla Hedlund

DIMENSIONS FRAME

- Height : 108 cm

DIMENSIONS ASHTRAY

- Height : 32 cm
- Diameter :18 cm

Nola Slingan Ashtray

STANDARD COLORS

RAL 9005

MAINTENANCE

Regular cleaning to remove ash and grime is recommended.

VARIANTS

Wall-mounted or attached to a post and secured to the surface.

CHARACTER

The Slingan ashtray spirals into an intriguing shape that can be emptied easily.

WEIGHT

-Ashtray : 4.8 kg
- Frame : 12.5 kg

THICKNESS

- The stainless steel sheet in the cylinder is 2 mm thick
- The steel in the frame is 4 mm thick

Nola Slingan Ashtray

MATERIALS AND SURFACE TREATMENTS

Stainless Steel. The cylinder is made in 2 mm stainless steel. The grate is made in anodised cast aluminium. The frame is made in 4 mm zinc-electroplated steel powder-coated in standard colour black RAL 9005. The bolts included are stainless steel. The flap that opens to empty the contents is opened by a hexagon socket head screw, which is included.

PRODUCT NUMBERS AND COMBINATIONS

- Ö15-01
- Ö15-01N SLINGAN ashtray with support post, stainless steel with post lacquered in Jet Black RAL 9005, attachable
Append to product number
Slingan ashtray, wall-mounted version, stainless steel

ASSEMBLY AND PLACEMENT

- Fully assembled.
- The wall-mounted version fastens with three M8 bolts measuring 10 mm x 30 mm and three washers measuring 10 mm x 21 mm. They are included in the delivery.
- The support post bolts to the surface with three 16 mm M8 bolts and thee lockable nuts. They are included in the delivery. The post is prepared with two holes with a diameter of 13 mm for 12 mm bolts, which are not included.
