Solar Check Roller Blinds

ROLLER BLINDS

Solar Check Roller Blinds

ROLLER BLINDS

Functionality, user comfort and elegant appearance

Roller blinds have been the undisputed protagonists of the last few years, thanks to their versatility, simplicity, and comfort of use, without sacrificing their elegant and minimalist appearance.

INFORMATION

PRODUCTION

Made in Spain

BRAND

Solar Check

PRODUCT TYPE

Rollar Blind

COLLECTION

Roller

DIMENSIONS S80 PRO SYSTEM

- Width : 400 cm
- Height : 400 cm

DIMENSIONS  S35 SYSTEM

- Width : 160 cm
- Height : 220 cm

MATERIAL

Aluminium

ALUMINIUM TUBE

Ø35 mm

MULTIPLE DRIVE SYSTEMS

We offer multiple drive systems and automation choices (manual, battery-powered, mechanical, etc.), ideal even in spaces that are difficult to access.

Solar Check Roller Blinds

SOLAR PROJECTION

An efficient and modern solar protection, energy saving and privacy solution that guarantees maximum visual comfort.

DIMENSIONS S45 & ELITE SYSTEM

- Width : 240 cm
- Height : 320 cm

MANUFACTURED

Manufactured with highly resistant materials and components that guarantee a long service life, they are combined with a wide range of technical fabrics of the highest quality and performance, without compromising on cutting-edge design. They perfectly integrate with the architecture of any building.

DIMENSIONS M49 / M60 SYSTEM

- Width : 320/400 cm
- Height : 360/400 cm

SYSTEM

Solar Check Roller Blinds

S35 SYSTEM

-Ideal for very small dimensions. It fits perfectly on small windows. -Minimalist and very aesthetic look. -Snap-on slim bracket cover. -Aluminum tube Ø35 mm. -Plastic or metal chain. -Easy-lift spring assist booster in option for a faster and easier maneuvering.

Solar Check Roller Blinds

S45 SYSTEM

-High polish finish. -Advanced snap-lock booster fitment. -Steel brackets with plastic covers available in two lengths. -Excellent functionality and aesthetics with a robust and minimalist composition at the same time. -S45 chain control system. Up to 10 mm Idler extension in 1 mm increments allowing for precise adjustments in the installation. -New two-piece snap-lock winder assembly for an easier and safer chain insertion. Reduce chain assembly time by up to 75%.

Solar Check Roller Blinds

ELITE SYSTEM

-Exclusive Solarcheck system. -Steel brackets with aestethical thermoplastic covers. 43 mm T6063 T6 UNI 8278 aluminium tube. -System with clutch 1.4 (One meter of chain carries 40 cm of fabric). -060 T60 UNI 8278 extruded aluminium hem bar with thermoplastic endcaps.

Solar Check Roller Blinds

S80 PRO SYSTEM CRANK

-A robust crank system for indoor use. -Lacquered steel brackets with plastic caps. 60 mm or Ø80 mm extruded aluminium T6 tube. 15 mm extruded aluminium crank handle. -Concealed Ø20 mm extruded aluminium hem bar with matching plastic covers.

M49 / M60 SYSTEM

-DECO, G.DECO -System with clutch 1.4. 49 o Ø60 mm extruded aluminium T6 6060 roller tube. -Aesthetic, efficient, durable, and silent. Steel brackets and plastic covers.

Solar Check Roller Blinds

-Made of fibreglass reinforced nylon, a thermoplastic with high performance and durability. -Optional decorative brackets Deco and Gran Deco for an extra in design and decoration.

S80 PRO SYSTEM MOTORISED

60 mm or Ø80 mm extruded aluminium T6 tube, depending on the width.  -Silent end cap with bearings and locking device. -Lacquered steel brackets with plastic cover.

Solar Check Roller Blinds

-HIPRO design bracket (minimum discount). -Includes mechanical motor, RTS or IO in supplement.20 mm aluminium hem bar. -Optional cable guide allows the S80 system to be installed indoors and outdoors.

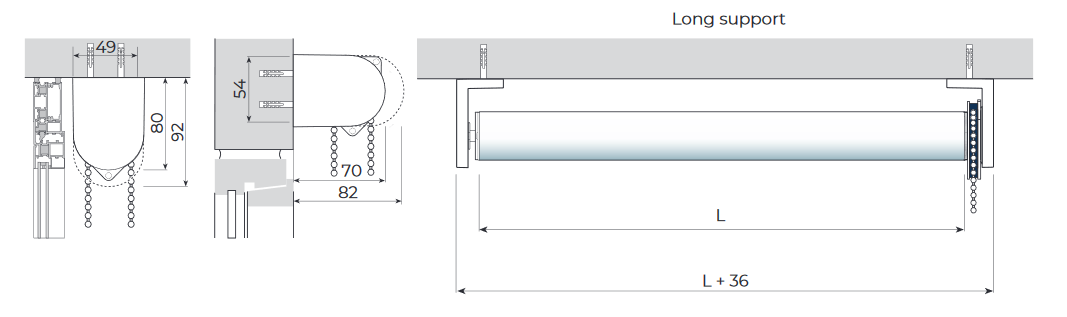

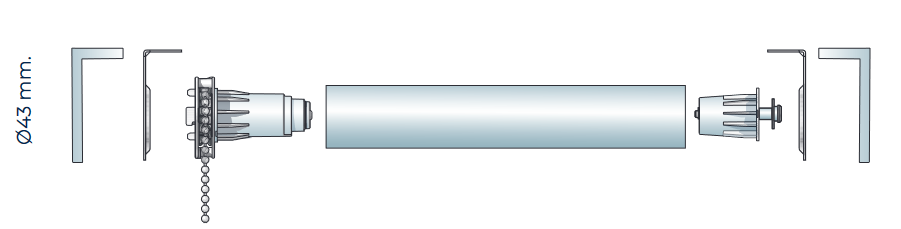

TECHNICAL DRAWINGS

S80 PRO SYSTEM

Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds

M49 / M60 SYSTEM

Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds

S35 SYSTEM

Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds

S45 SYSTEM

Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds

ELITE SYSTEM

Solar Check Roller Blinds
Solar Check Roller Blinds
Solar Check Roller Blinds
