Tecnografica Elisir Decorative Panels
ELISIR DECORATIVE PANELS
ELISIR DECORATIVE PANELS
A single slab can reach a size of 150x300 cm and can be entirely decorated and customized, following the specific characteristics of your own project.
INFORMATION
BRAND
Tecnografica
PRODUCT TYPE
Decorative Panels
PRODUCTION
Made in Italy
TEMPERATURE RANGE
-20°C +80°C
MAXIMUM SIZE
148x300 cm
DIMENSIONAL TOLERANCE
± 1.5 mm
TOLERANCE OF ORTHOGONALITY
<4 mm
THICKNESS
8.7 mm
WEIGHT
21 kg/m2
THERMAL EXPANSION
8 ∙10-6 °C-1
THERMAL CONDUCTIVITY
5.5 W/m²K
SURFACE HARDNESS (MOHS SCALE)
5.5
MATERIALS
- Laminated Glass
- Vetro stratificato
RESISTANCE
Impact Resistance Uni En 12600 : 1(B)1
BURNING BEHAVIOR
B-s1, d0 according to UNI EN 13501-1
DOWNLOADS
↓ Data sheet
↓ Complete Form
APPLICATIONS

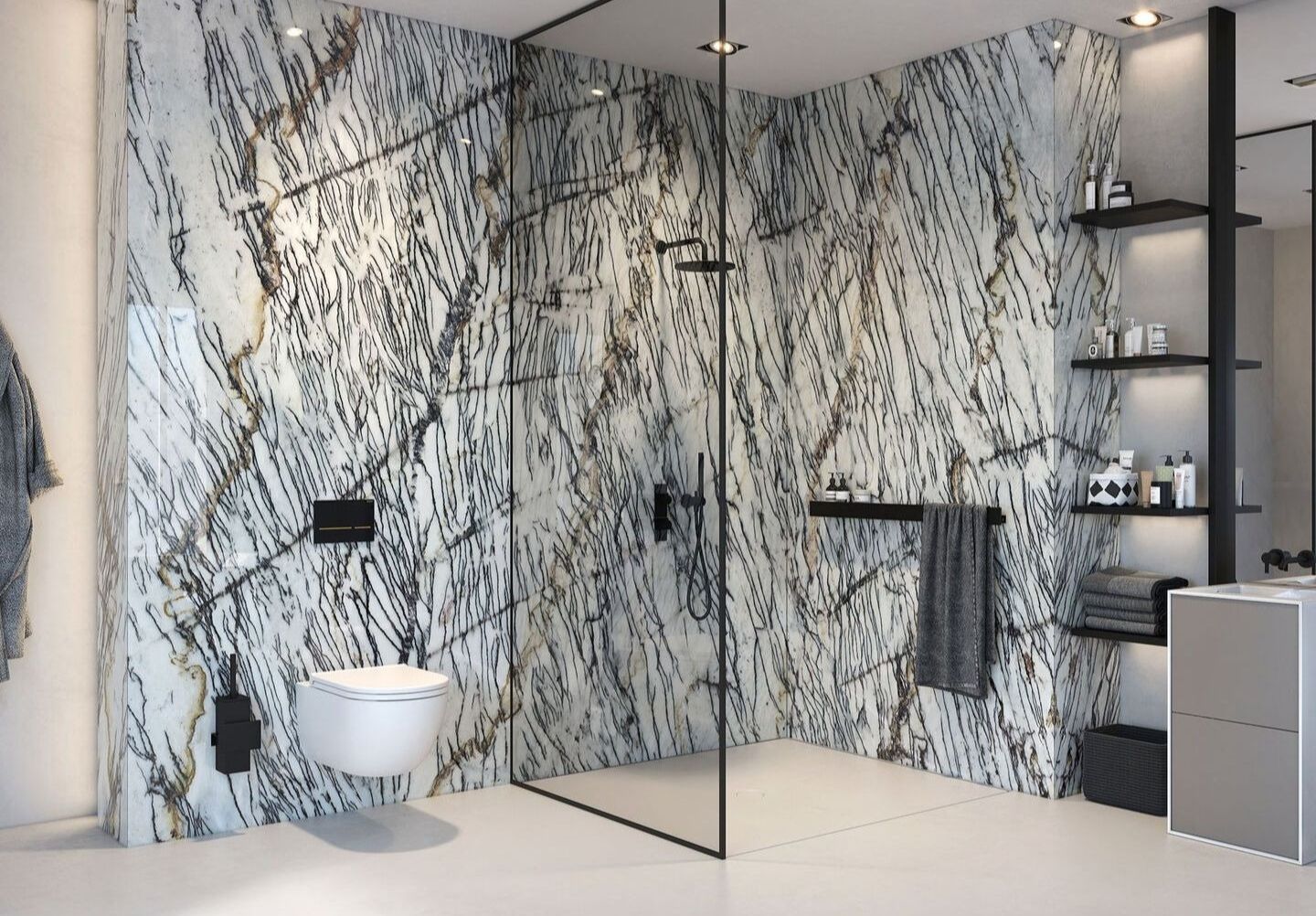

-Walls -Wet Environments
-Furniture -Interior Doors
-Kitchens -Sinks -Tubs
FEATURES
-Large Format -Laminated Glass Decorative Panel -Which Can Be Backlit.
VARIANTS
PRODUCT’S MAIN CHARACTERISTICS
- Highly aesthetic image effect and depth, thanks to images being scanned with the Superscan HD system.
- Possibility of customizing the design and measurements.
- Safety glass.
- High impact resistance.
- Large-format ceramic slabs installation method.
- Workable on site.
- Also availabe in tempered glass version.
