Quingenti wall absorbents. The name Quingenti comes from the Latin word for 500. 500 mm is the common denominator for all variants. The relatively small panels with its beveled edge of 10 x 10 mm gives Quingenti its personality.

The fabric is nailed to the solid body with high quality and precision. With Quingenti you can give the room a lot of character and absorption surface and create unique patterns with different mounting options.

The large selection of standard fabrics provide almost unlimited opportunities to create beautiful and functional wall environments. The panels are easy to install using the panel click button connectors.

Glimakra Quingenti Rhombus Panels

INFORMATION

FABRIC AND PIPING

Look in Product sheet Fabric and piping.pdf for our standard fabrics, y

BODY

40 mm polyether (Oeko‑Tex) glued on 8 mm MDF board (Nordic Ecolabel)

UPHOLSTERY

Upholstered with fabric nailed on the back.

INSTALLATION

Mounting with panel click button connectors. 100 % recyclable materials.

ACOUSTICS

Measurements made in accordance with ISO 354:2003. Evaluation made according to standards for individual objects SS 25269:2013, 2015‑12‑26, and ISO 11654:1997. (Report 10171560.02, Date 2013‑01‑04, WSP Akustik)

CERTIFIED

Glimakra of Sweden AB is certified according to ISO 9001:2015 and ISO 14001:2015.

OPTIONS

Installation: Alternative mounting with aluminum rails screwed to the wall.

Glimakra Quingenti Rhombus Panels

DOWNLOADS

↓ Brochure
↓ Product sheet
↓ 3D
↓ ArchiCAD
↓ Certificate Möbelfakta

SPECIFICATION TEXT

E.g: Glimakra Quingenti Circle Ø500 x 50 mm. Body with frame and beveled edge 10 x 10 mm, fabric Blazer CUZ28. Mounting with panel click button connectors, distance 10 mm. Acoustics evaluated according to SS 25269. Meet the criteria of Möbelfakta

WEIGHT

- Circle : 3 kg
- Square : 3.5 kg
- Hexagon : 3 kg
- Triangle : 2 kg
- Rhomboid left : 5.5 kg
- Rhombus  : 3.5 kg
- Rhomboid right : 5.5 kg

DESIGN

Team Glimakra

THICKNESS

50 mm

PRODUCT TYPE

Panels

PRODUCTION

Made In Sweden

DIMENSIONS

DIMENSIONS

-Circle -Square -Hexagon -Triangle -Rhomboid left -Rhombus -Rhomboid right

Glimakra Quingenti Rhombus Panels
Glimakra Quingenti Rhombus Panels
Square
Glimakra Quingenti Rhombus Panels
Hexagon
Glimakra Quingenti Rhombus Panels
Triangle
Glimakra Quingenti Rhombus Panels

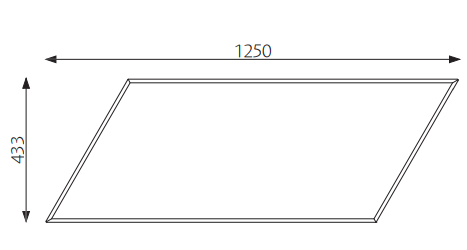

Rhomboid left
Glimakra Quingenti Rhombus Panels
Rhombus
Glimakra Quingenti Rhombus Panels
Rhomboid right
