Akomo NV

Akomo Escher A Acoustic Panel

ESCHER A ACOUSTIC PANEL

Akomo Escher A Acoustic Panel

ESCHER A ACOUSTIC PANEL

Escher is a modular acoustic system for wall and ceiling installation with a visually distinct personality.

Each installation is built up of compact hexagonal units that can be combined to configure a pattern of random size and shape.

INFORMATION

BRAND

Akomo

PRODUCT TYPE

Acoustic Panel

APPLICATION

- Wall
- Ceiling

BASE MATERIAL

Basotect absorption foam Or Polycarbonate

DIMENSIONS

- Width : 520 mm
- Height : 600 mm
- Depth : 120 mm

Akomo Escher A Acoustic Panel

ABSORPTION AREA RT60  FREQUENCY 250-2000 HZ

0.3 m² Sabin per unit

PRODUCTION

Made in Belgium

SOUND ABSORPTION FOAM

NRC 0.9

MOUNTING

Installation is very easy as each unit is hung individually.

Akomo Escher A Acoustic Panel

EXTRA

Standard DALI and switch dimmable with integrated corridor function

COLOUR TEMPERATURE

3000 or 4000 K

LIGHT SOURCE

Talexx module CLE Quadrant Lens 350 mA, 2540 lumen, 22 Watt

FINISH

Flock Color

USE

Indoor

PROPERTIES

- Lightweight
- Sound Absorbing
- High Aesthetic Value

DETAIL

The system also comprises a light unit, which can be integrated in the desired quantities in every configuration. M. C. Escher was a Dutch graphic artist with a distinctive style based on trompe l'oeuil effects and geometric patterns.

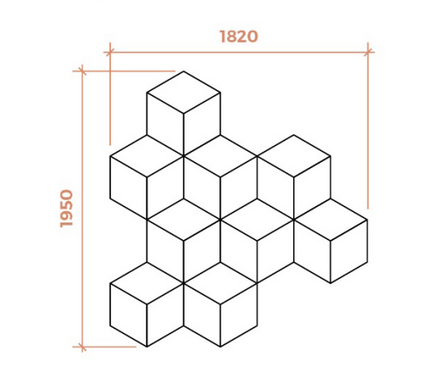

TECHNICAL DRAWING

Akomo Escher A Acoustic Panel

COLLECTION

Escher

CLEANING

Can be dusted daily with vacuum cleaner.

FLEXIBILITY

This flexibility enables the system to be easily applied to ceilings and walls where interruptions (lighting and ventilation elements, windows etc.) occur and on surfaces with irregular contours. The hexagonal units each consist of three diamond shaped Basotect parts that are flocked in a different shade or colour, which together with the three-dimensional profile provides stunning visual effects.

COLORS

COLORS

Akomo Escher A Acoustic Panel
Beige
Akomo Escher A Acoustic Panel
Koala Grey
Akomo Escher A Acoustic Panel
Pastel Green
Akomo Escher A Acoustic Panel
Pine Green
Akomo Escher A Acoustic Panel
Deep Blue
Akomo Escher A Acoustic Panel
Forest Green
Akomo Escher A Acoustic Panel
Angora Grey
Akomo Escher A Acoustic Panel
Anthracite
