Emco Diplomat Original Large With Ribbed Carpet Insert
DIPLOMAT ORIGINAL LARGE WITH RIBBED CARPET INSERT
DIPLOMAT ORIGINAL LARGE WITH RIBBED CARPET INSERT

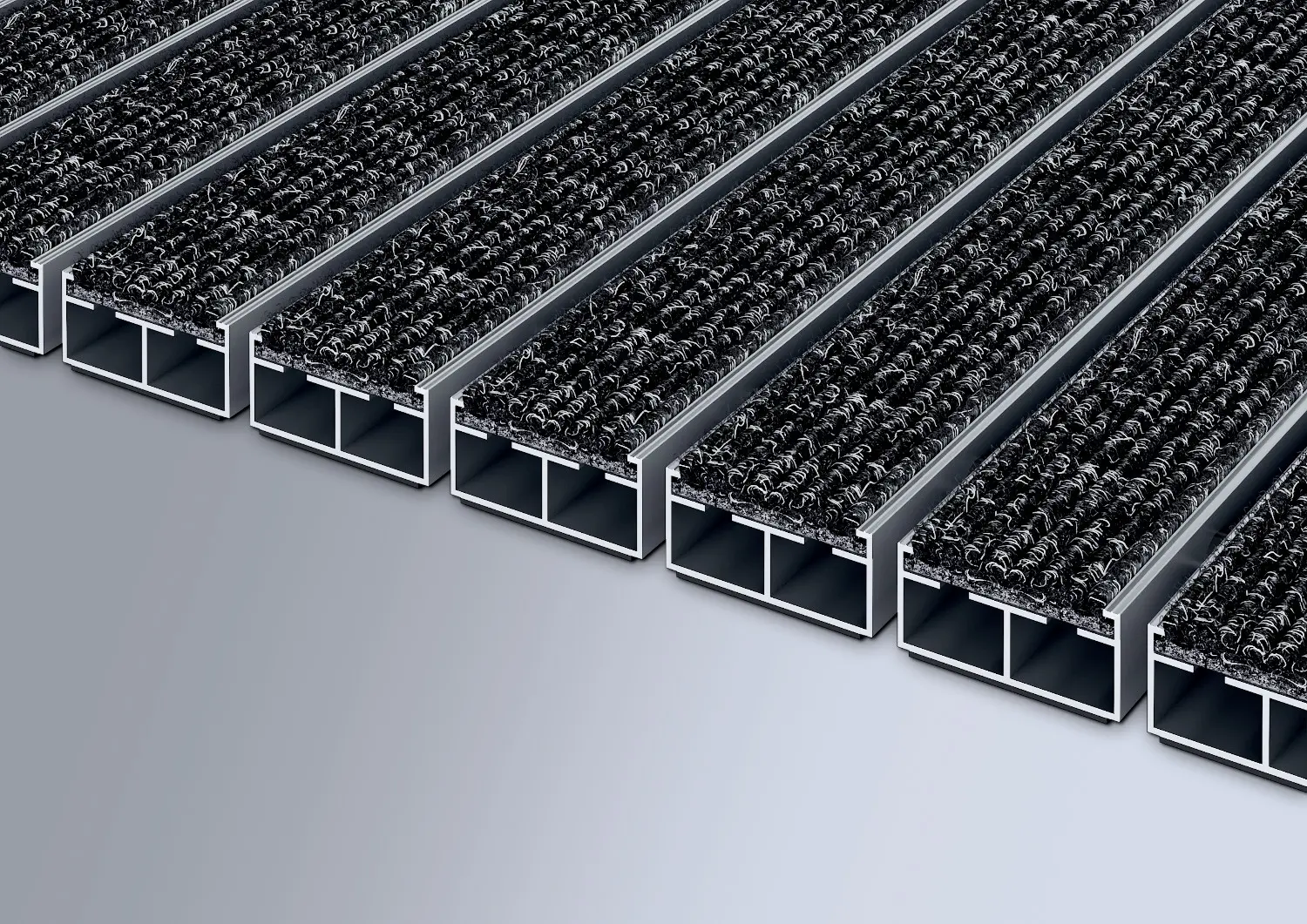

The extra-wide original entrance mat with the effective, coarse-fibre rib insert is exceptionally abrasion resistant and offers maximum dimensional stability.
Particularly ideal for collecting fine dirt. Optimally designed for buildings exposed to average to heavy footfall.
INFORMATION
BRAND
Emco
PRODUCT TYPE
Carpet
APPROX. HEIGHT
- 12 mm
- 17 mm
- 22 mm
WEIGHT
- 7.7 kg/m²
- 8.3 kg/m²
- 9.2 kg/m²

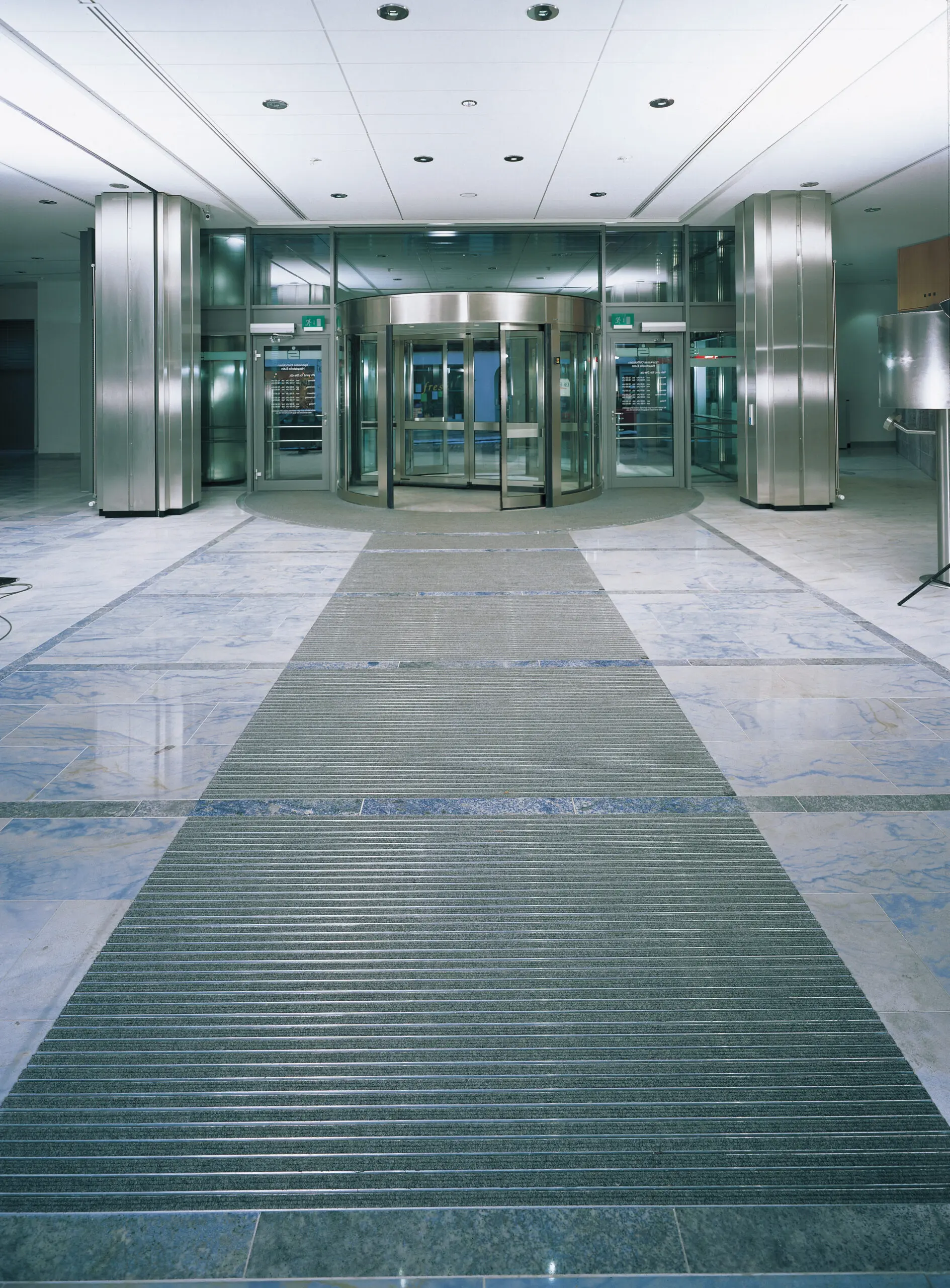

REVOLVING DOOR DRIVES
Our mats with a profile spacing of 3mm in accordance with DIN EN 16005 are available for revolving door drives.
PRODUCTION
Made in Germany
PROFILE WIDTH
44 mm
TREAD SURFACE
- Robust
- Recessed
- Weather-proof
- Ribbed Carpet Strips
ACCESSIBILITY
- Prams
- Wheelchairs
- Hand trolleys
- Sack-/hand truck
- Light shopping trolleys
CONNECTION
Plastic-coated Steel Cable
STANDARD PROFILE CLEARANCE A
-5 mm -Rubber Spacers

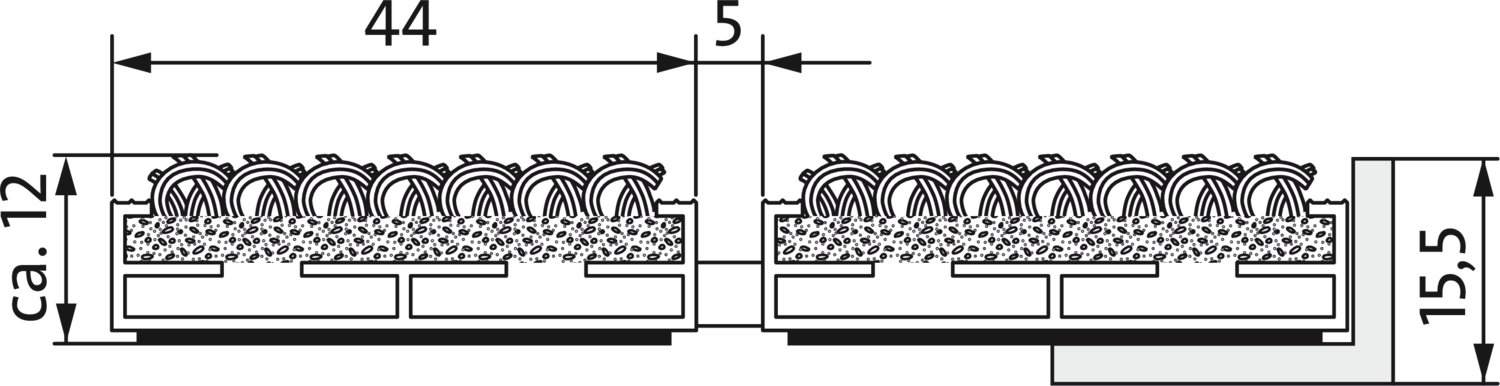

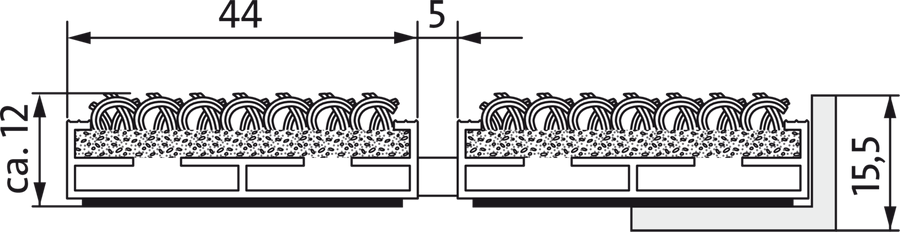

TECHNICAL DRAWING
SUPPORT CHASSIS
Made using aluminium with sound absorbing insulation on the underside
SUPPORT CHASSIS COLOUR
Anodised colours for an additional charge : EV3 gold, C33 mid-bronze, C35 black or C31 stainless steel
PILE MATERIAL
100% PP (polypropylene)
SLIP RESISTANCE
R 11 slip resistance as per DIN 51130
COLOUR FASTNESS TO ARTIFICIA
Good 6
COLOUR FASTNESS TO RUBBING I
Good 4
AREA
- Indoor Areas
- Covered Outdoor Areas
MAT DIVISION AS PER FACTORY
-From a profile length of 3000 mm or a maximum mat weight of 25 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request. -From a profile length of 3000 mm or a maximum mat weight of 30 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
COLOUR FASTNESS TO WATER ISO
Good 5
ADDITIONAL PROFILES
None
NOTE ON ABILITY TO WITHSTAND
Shunting movement not permitted
MAT TYPE
Emco Diplomat
INSERT STYLE
Ribbed carpet insert
PROFILE WIDTH
Large
TYPE OF DIRT
Rubs off fine and damp dirt
FLAMMABILITY
Insert for Light Grey and Anthracite ribbed carpet colours available on request (surcharge applicable) with fire classification Cfl-s1 according to EN 13501.
FEATURES
USAGE AREA
-Apartment building -Family home -Hotel -Kindergarten/Nursery -Medical practice -Offices and administrative buildings -Retail sector -Retirement homes and Care-/Nursery Homes -School -Sports hall
EXAMPLES OF TYPE OF DIRT
- Ash
- Hair
- Sand
- Twigs
- Street Dust
- Textile Fibres
- Small Leaves
INSERT TYPE
Original
DIRT COLLECTION ZONE
Indoor and outdoor (covered, Zone 1+2)
COLORS
-Anthracite no. 200 -Brown no. 485 -Light grey no. 220 -Red no. 305 -Sand no. 430
