Mottura Energy Motorized Roller Blinds
ENERGY MOTORIZED ROLLER BLINDS
ENERGY MOTORIZED ROLLER BLINDS

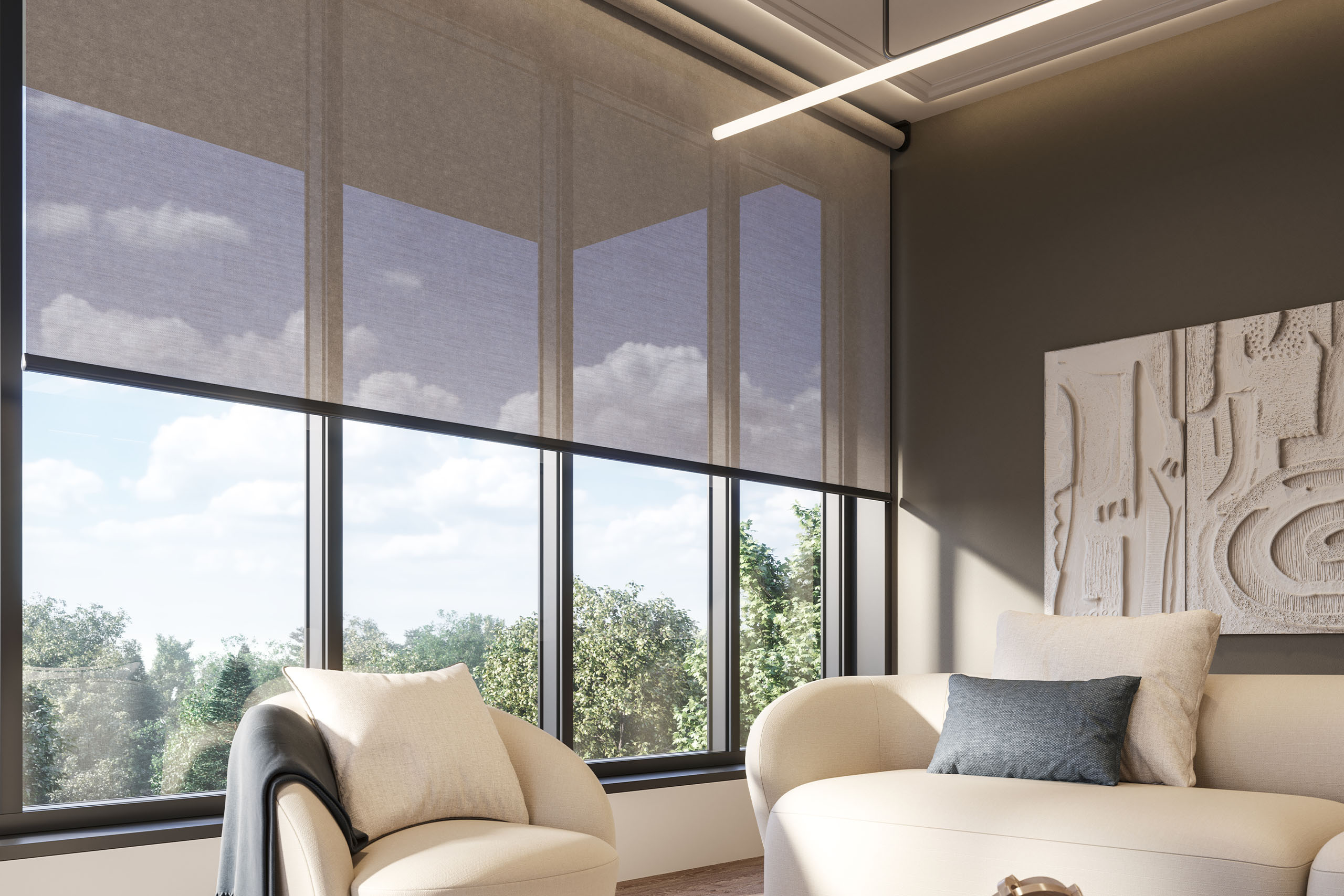

Energy is the motorized roller blind program. The operation, both in the single blind and parallel versions.
INFORMATION
BRAND
Mottura
PRODUCT TYPE
Roller Blinds
COLORS
- Anodized Silver
- Glossy White RAL 9016
- Matte Black RAL 9005
BUTTON AND RADIO CONTROL
Simultaneous button and radio control with M2Net remote control and integrated 868/915 Mhz bidirectional radio receiver.
COLLECTION
Energy
PRODUCTION
Made in Italy
RECEIVER
Radio control with remote control and integrated R.F. receiver
DOWNLOADS
↓ Depliant
↓ Technical data sheet
BATTERY OPERATION
Motorized blinds with battery operation, now available for medium to large sizes, are particularly practical as they can be installed without any wiring.
MAXIMUM WIDTH
600 cm
MAXIMUM HEIGHT
800 cm
SIZE
Medium & Large
VERSION

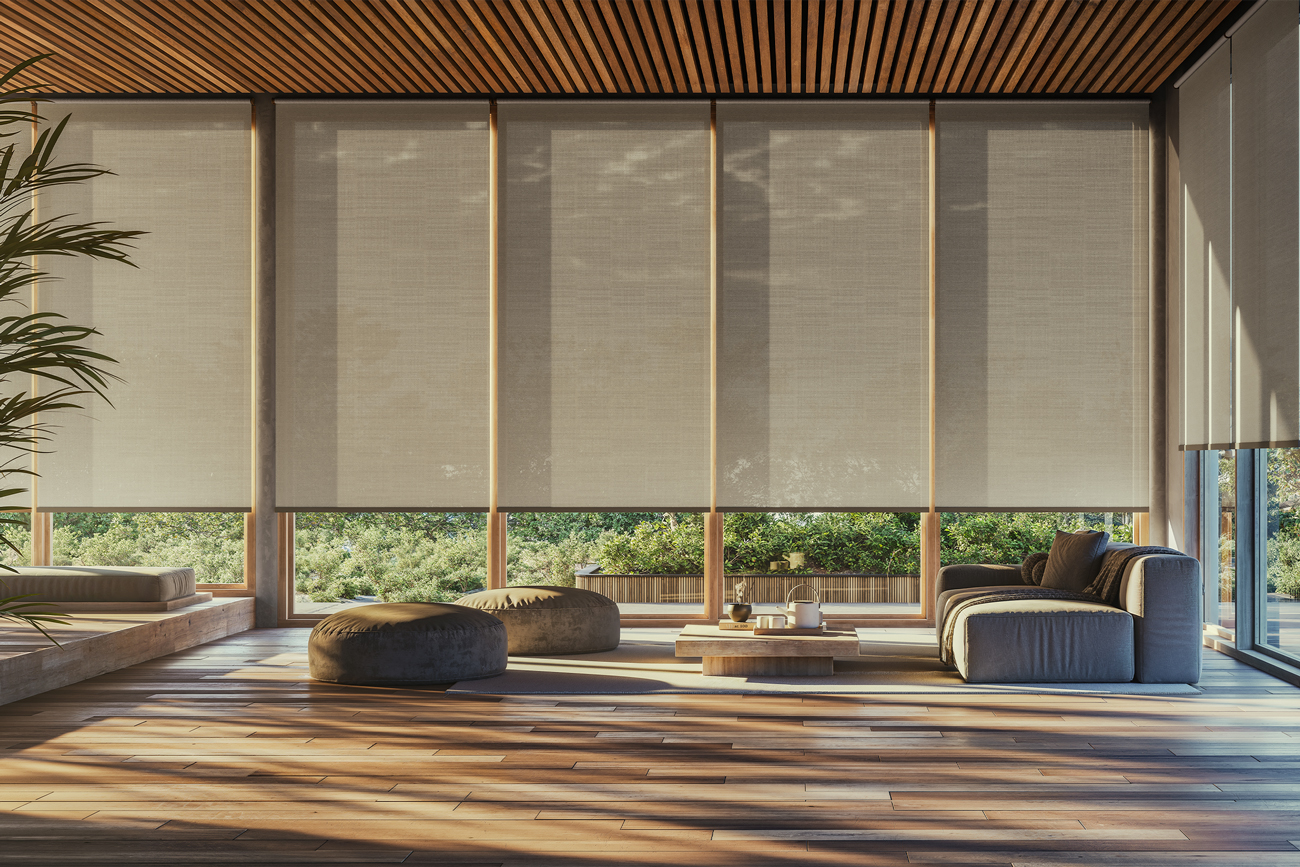

Single & Parallel
FINDER SOLUTIONS FOR SMART HOME
Range of outdoor roller blinds (471 – 472 – 473) and indoor blinds suitable for large glass surfaces.
SHADING
Energy 473 is a system suitable for large filtering and shading blinds for indoor and outdoor use.
CERTIFIED
Energy 471 – 472 – 473 are systems suitable for indoor and outdoor use, CE EN13561 certified for outdoor use.
TOP RANGE

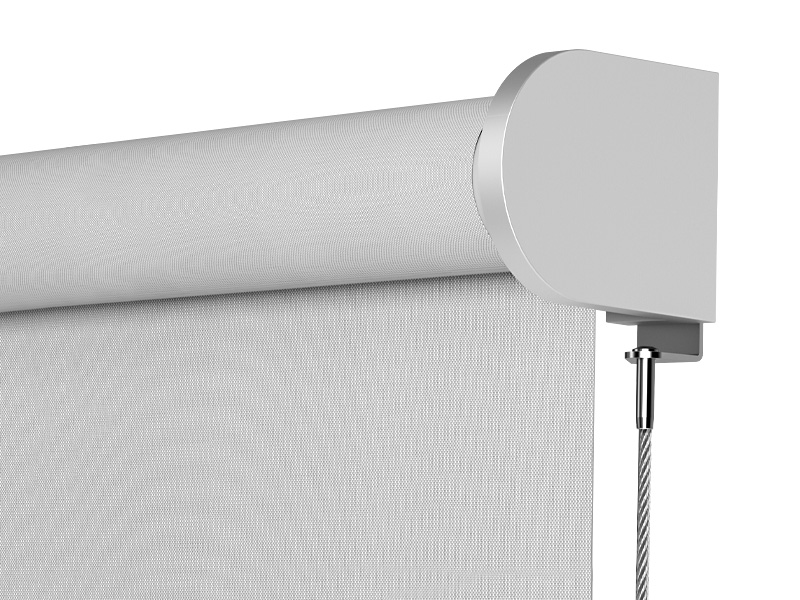

Energy 473, the top of the range, is suitable for areas up to 48 m2 for a single system and is the optimal solution for ambitious sun protection projects. The lateral steel cables and the stop mechanism protect the system from wind-induced oscillations.
CABLES
Steel
ENVIRONMENT
Indoor & Outdoor
TECHNICAL DETAIL
TECHNICAL DETAIL
| MODELS | L MAX | H MAX | INSTALLATION CEILING/WALL | INSTALLATION ON WINDOW | INSTALLATION CONCEALED | CONTROL MOTOR | CONTROL BATTERY OPERATED |
|---|---|---|---|---|---|---|---|
| Energy 428 | 160 | 260 | Yes | Yes | Yes | 24VDC | - |
| Energy 736 | 260 | 400 | Yes | Yes | No | - | 24VDC |
| Energy 440 | 300 | 400 | Yes | No | Yes | 230VAC | - |
| Energy 473 | 600 | 800 | Yes | No | No | 230VAC | - |
| Energy 740 | 300 | 400 | Yes | No | No | - | 24VDC |
| Energy 450 | 400 | 440 | Yes | No | Yes | 230VAC | - |
| Energy 450 - Eclisse V3 | 400 | 440 | Yes | No | No | 230VAC | - |
| Energy 471 | 400 | 440 | Yes | No | No | 230VAC | - |
| Energy 472 | 500 | 560 | Yes | No | No | 230VAC | - |
| Energy 736 - Eclisse S2 | 260 | 400 | Yes | No | No | - | 24VDC |
| Energy 736 - Eclisse S3 | 260 | 400 | Yes | No | No | - | 24VDC |
| Energy 740 - Eclisse V3 | 300 | 400 | Yes | No | No | - | 24VDC |
| Energy 728 | 160 | 260 | Yes | Yes | No | - | 24VDC |
MODELS
ALL MODELS
-Energy 736 -Energy 440 -Energy 473 -Energy 740 -Energy 428 -Energy 450 -Energy 471 -Energy 472 -Energy 450 - Eclisse V3 -Energy 736 - Eclisse S2 -Energy 736 - Eclisse S3 -Energy 740 - Eclisse V3 -Energy 728
